Coils

Type 210, Type 300: Plug DIN 43650 standard or with junction box. 220 type: with cable, plus iron cover.

contact us
  • Technical Parameters
  • Accessories
  • Download

Characteristics

- Insulation class: F-class UL-approved product: Class H.

- Protection class: IP65 220 type: IP67.

- Applicable environment temperature: -40°C~+55°C

- Permitted voltage fluctuations: (-15% to +10%) Rated voltage

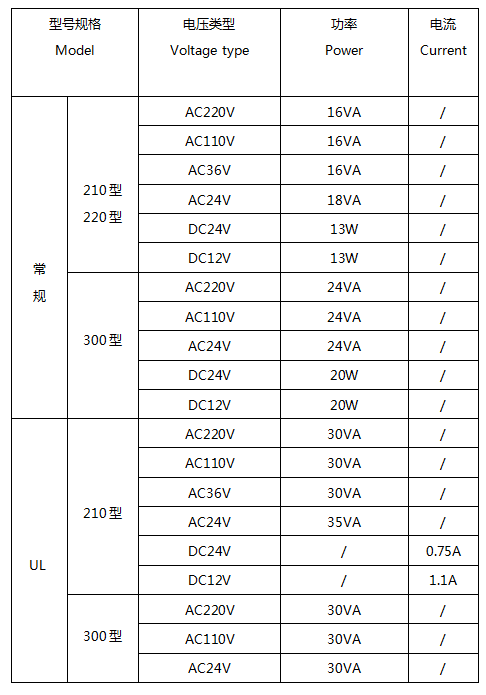

Technical Parameters


Approvals

CE CQC UL/CUL


Installation and use:

1. The coil must be grounded.

2. The coil must be installed on the valve body to be energized to prevent the coil from heating and burning.
